ESD Rubber Mats.





Advantages

1.   Excellent vibration resistance and fatigue resistance;

2.   Automatic adjustment of the force applied, to relieve the sense of fatigue.

3.  Volume resistance ≤108Ω㎝, thickness at 2 or 3mm x10 m.

4.  With long Service life.


Performance of antistatic table mat

Performance of Antistatic Table Mat

  Specification

antistatic layer(grey,blue ,

green layer)

Surface resistance,Ω

107-109



 0.6*10*2 or 3mm

 0.9*10*2 or 3mm

1*10*2 or 3mm

  1.2*10*2 or 3mm



Friction static fields,V

＜100

Conductive layer(black layer)

Product specification, Ω

≤106

Friction static fields,V

＜50

Declining stage of static

   voltage



       5000-500V

＜1.9

Volume resistance

107-109Ω㎝

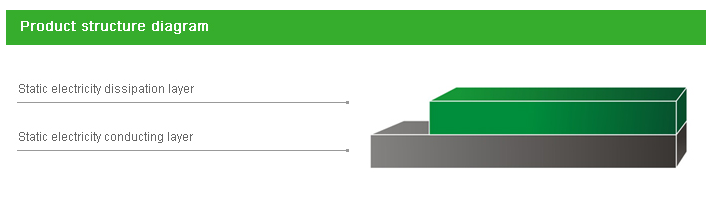

The Anti-static table mat has two layers. The upper surface layer is anti-static layer, the bottom layer is black conductiving layer. Green and black to 1:1 proportion. Use more service life

It consists of static electricity dissipation layer and static electricity conducting layer. It adopts quality nitrile-butadiene rubber as main material as well as quality conductive carbon black and static electricity dissipation powder

It features abrasion resistance, oil resistance, acid and alkall resistance, aging resistance, flame resistance ,high elasticity, smooth surface , etc.
